丝线红（SMT18R）乙烯基包裹

Film construction

• Film type: Pressure-sensitive high-grade Renolit polymeric film with air-release channels
• Film thickness: 0.12 mm (120 µm)
• Total thickness with liner: 0.28 mm
• Liner: Double-side PE-coated Kraft, solventless silicone coating, air-release (ISO 9001, ISO 14001, OHSAS 18001)
• Adhesive: Henkel solvent-based acrylic, transparent, viscosity 1000–3000 cps, 12 µm dry

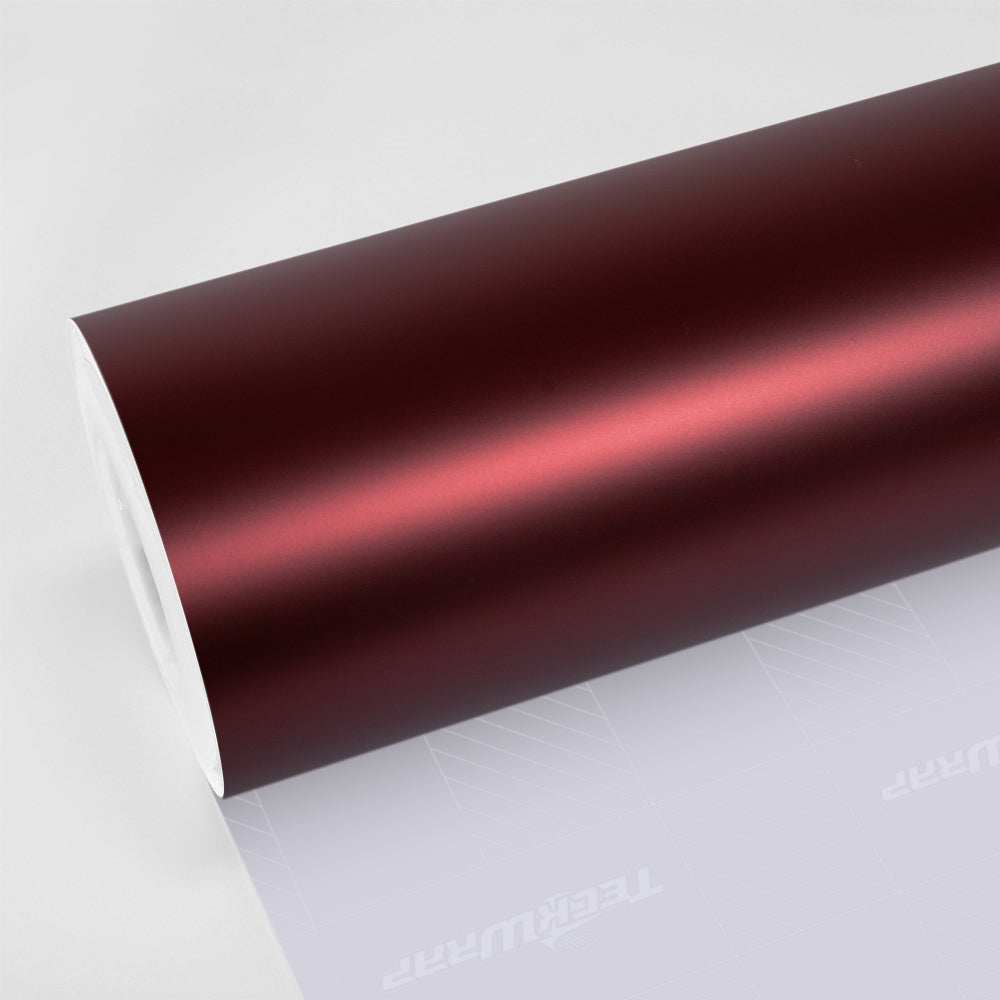

• Finish: Satin metallic Velour Red, directional
• Roll width: 152 cm (5 ft)
• Full roll length: 18 m or 23 m

Performance

• Tensile strength: MD 29.5 / CD 24.8 N/mm² (ASTM D882-02, 200 mm/min)
• Elongation at break: MD 206.8 / CD 196.4 (ASTM D882-02)
• Dimensional stability: 2% shrinkage (ASTM D1204-02, 10 min at 70°C MD)
• Surface tension: 34 dynes/cm (ASTM D2578-04a, 24 hrs after production)
• Storage shelf life: 3 years at +10°C to +20°C, 50% RH, dry conditions, away from sunlight

Warranty

Standard TeckWrap limited warranty. Scratches not covered. Use same production LOT for color consistency across panels.

• Apply at +17°C to +23°C
• Service range: -45°C to +45°C
• Standard squeegee with soft (wet) buffer
• Conformability: smooth and medium-curved surfaces
• Post-heat: 65°C
• Cure: 24 hrs (48 hrs recommended)
• Overlap: 3–4 mm
• Directional film, check orientation before cutting
• Remove protective cap before install

All TeckWrap statements, technical information, and recommendations are based on tests believed to be reliable but do not constitute a guarantee or warranty. All products are sold with the understanding that the buyer has independently determined the suitability of products for their purpose.

TeckWrap products are warranted to be free of defects in material for the period of shelf life. In case of defects, TeckWrap will replace the product or compensate at its sole discretion. This is the exclusive obligation of TeckWrap Inc.

Warranty does not cover normal wear, transportation, labor, or consequential damages.

Screen images may vary, refer to physical color swatches. Use same production LOT for color consistency. Scratches during application or daily use are not covered.
