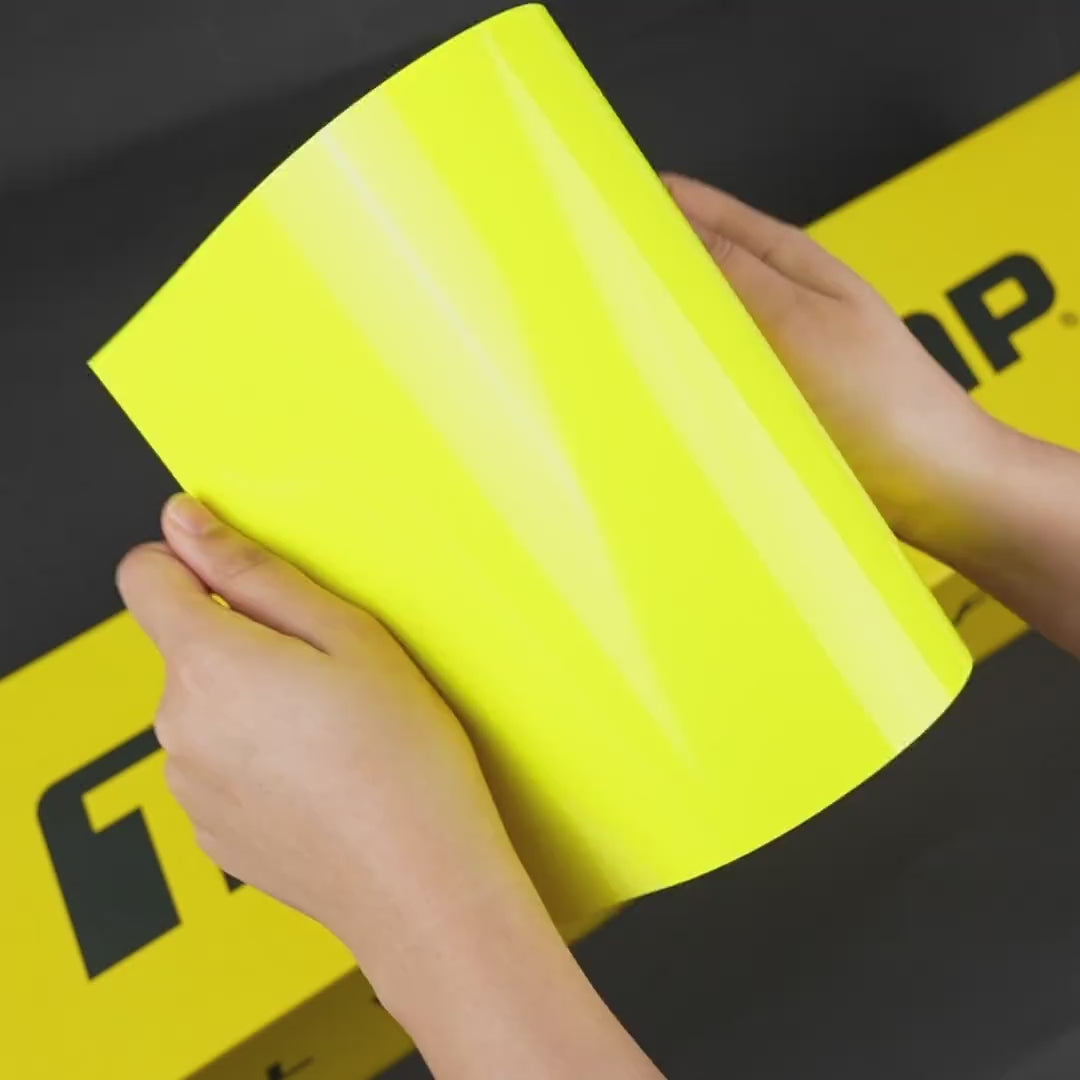

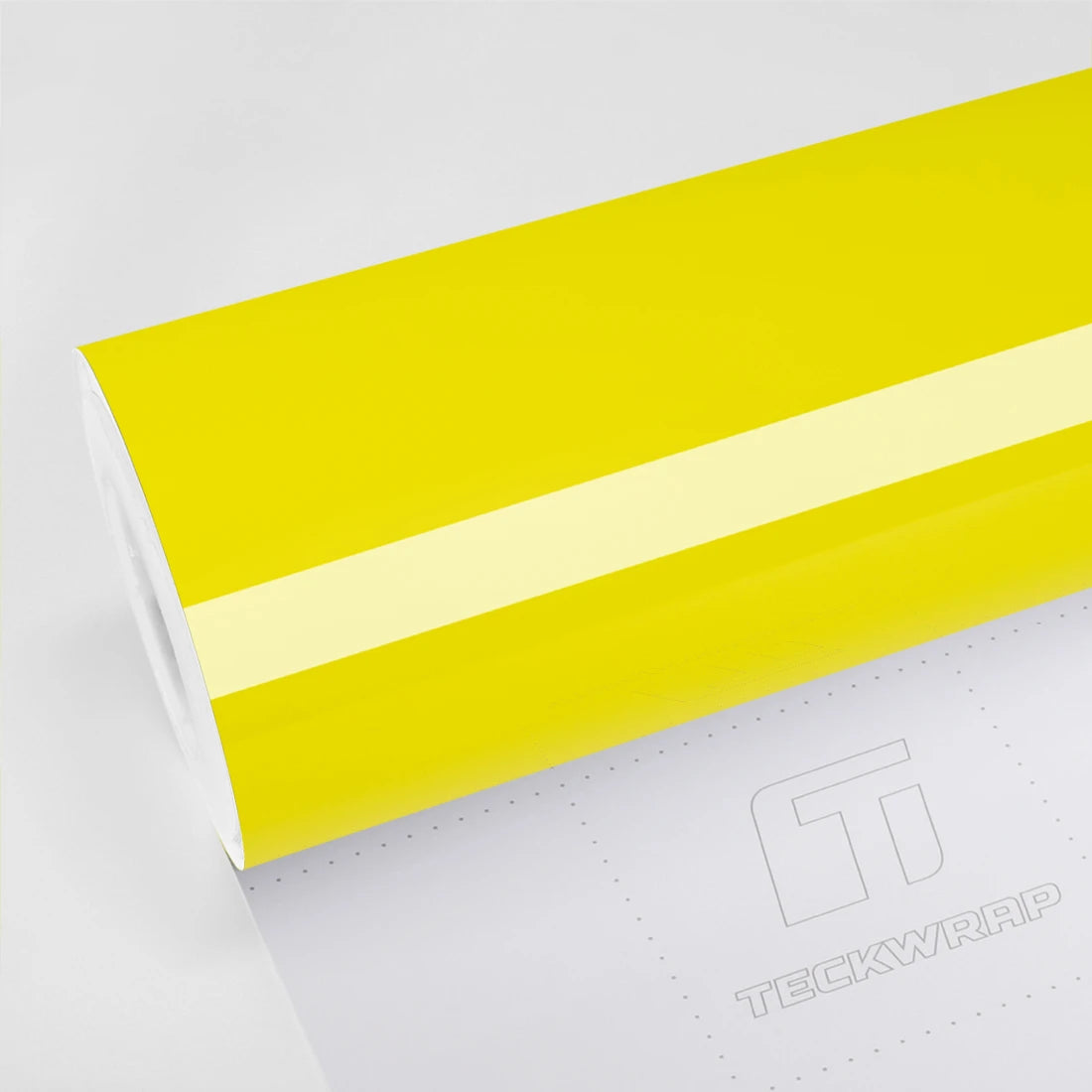

Gloss Citron Yellow Vinyl Wrap (EV01)

Film Construction

• Film Type: Premium polymeric hybrid with air-release channels and Super Gloss HD finish
• Film Thickness: 0.14 mm
• Release Liner Thickness: 0.03 mm
• Backing Liner Thickness: 0.13 mm
• Total Thickness (with liner): 0.30 mm
• Liner Thickness: 142 µm plastic (HD high-gloss)
• Adhesive: Henkel solvent-based acrylic, ultra-weather-resistant, viscosity 1000–3000 cps, 12 µm dry
• Top Layer: PET protective layer (peel before heating)
• Roll Width: 5 ft (1.52 m)
• Full Roll Length: 59 ft (18 m)

Performance

• Service temperature: -35°C to +35°C
• Release force: 0.18 N/25mm (standard 0.10–0.30)
• Initial tack: 1015 g/25mm (standard 800–1500, GB31125-2014)
• Peel strength (180°): 8.1 N/25mm (standard ≥4.9, GB/T2792-1998)
• Adhesion strength: 70 (standard ≥60, no shifting, GB/T4851-1998)
• Aging tested: -65°C to +65°C, no residue
• Storage shelf life: 2 years at +10°C to +20°C, 50% RH, dry conditions, away from sunlight.

Warranty

• Designed for partial decal applications only. Limited color warranty: 6 months in Zone 3 areas and 1 year in all other zones. Warranty coverage varies by climate zone. Heat-removable, with minimal adhesive residue when removed within the applicable warranty period.

• Application temperature: +17°C to +23°C
• Tools: squeegee with buffer, knife, masking tape, heat gun, magnets, gloves, IR thermometer, IR heater
• Conformability: smooth and medium-curved surfaces
• Post-heat: 95–100°C (gloss finish)
• Cure: 24 hrs above 10°C (48 hrs at room temperature recommended)
• Overlap: 3–4 mm
• Non-directional film
• Avoid overstretching during application
• Remove the protective cap before installing
• Aftercare: pH-neutral products only, avoid hot wax or strong solvents

All TeckWrap statements, technical information, and recommendations are based on tests believed to be reliable but do not constitute a guarantee or warranty. All products are sold with the understanding that the buyer has independently determined the suitability of the products for their purpose.

TeckWrap products are warranted to be free of defects in materials for the shelf life period. In case of defects, TeckWrap will replace the product or compensate at its sole discretion. This is the exclusive obligation of TeckWrap Inc.
Warranty does not cover normal wear, transportation, labor, or consequential damages.
Screen images may vary; refer to physical color swatches. Use the same production LOT for color consistency. Film must be stored without the protective layer to prevent tunneling. Scratches during application or daily use are not covered.
