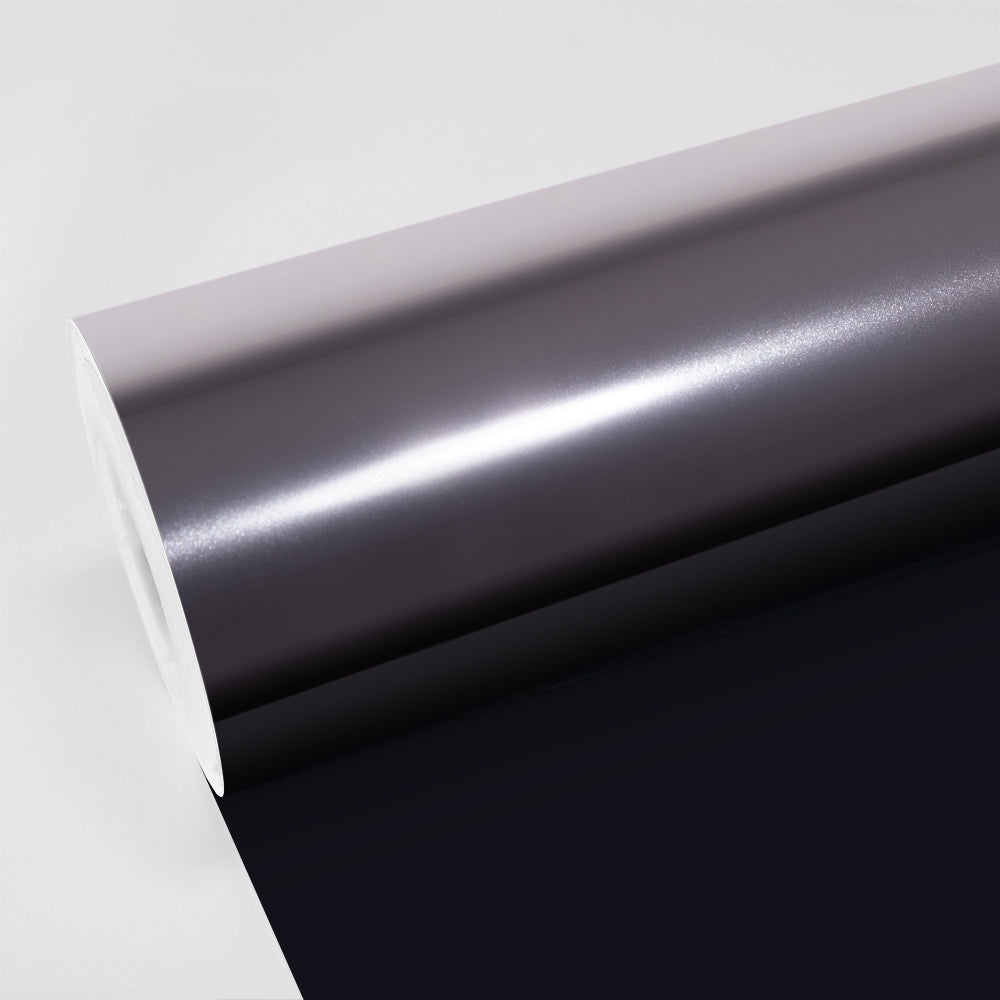

Chrome Gloss Crystal Vinyl Wrap (CHM22-HD)

Film Construction

• Film Type: Hybrid PVC with silver coating and air-release channels
• Film Thickness: 0.19 mm
• Release Liner Thickness: 0.03 mm
• Backing Liner Thickness: 0.13 mm
• Total Thickness (with liner): 0.35 mm
• Liner: Ultra-micro-grooved PET with air-release channels
• Adhesive: Henkel solvent-based acrylic, transparent, ultra-weather-resistant, viscosity 1000–3000 cps, 12 µm dry
• Finish: Reflective, non-directional for solid colors and directional for neochromes
• Roll Width: 5 ft (1.52 m)
• Full Roll Length: 59 ft (18 m)

Performance

• Service range: -30°C to +30°C
• 180° peel strength: 10.66 N/25mm (standard ≥6.8)
• Initial tack: 822 g/25mm (standard 800–1500)
• Release force: 0.1 N/25mm (standard 0.10–0.30)
• Adhesion: 70, no shifting (standard ≥60)
• Aging tested +65°C and -65°C: minimum adhesive residue
• Storage: 1 year at +10°C to +20°C, 50% RH, in original package, away from direct sunlight

Warranty

• Standard TeckWrap limited warranty for chrome film. Scratches, micro-marks, and metalized-layer distortion from overstretching, overheating, or crumpling are characteristic of chrome material and not covered. Use the same production LOT for color consistency across panels.


• Apply at +17°C to +23°C
• Standard squeegee with soft buffer
• A steam vacuum or IR heater is recommended for controlled heating
• Conformability: smooth and moderately curved surfaces only
• Limited stretchability, avoid overstretching, crumpling, or aggressive repositioning
• Overheating permanently distorts the metalized layer
• Designed for partial wraps, accents, decals, and detailing
• Not recommended for full vehicle wraps
• Remove the protective cap before installing
• Professional installation strongly recommended

All TeckWrap statements, technical information, and recommendations are based on tests believed to be reliable but do not constitute a guarantee or warranty. All products are sold with the understanding that the buyer has independently determined the suitability of the products for their purpose.
TeckWrap products are warranted to be free of defects in materials for the shelf life period. In case of defects, TeckWrap will replace the product or compensate at its sole discretion. This is the exclusive obligation of TeckWrap Inc.
Warranty does not cover normal wear, transportation, labor, consequential damages, or any of the following characteristics of chrome and metalized films: surface scratches and micro-marks from installation or daily use, distortion of the metalized layer from overstretching, overheating, or crumpling, or durability beyond the typical chrome film lifespan.
Chrome and metalized films are designed for partial wrapping applications. Full-vehicle wraps are not recommended. Professional installation by experienced installers familiar with chrome and metalized materials is strongly recommended. Color and reflectivity may vary depending on lighting conditions, viewing angles, and surroundings. Screen images may vary; refer to physical color swatches. Use the same production LOT for color consistency across panels.
